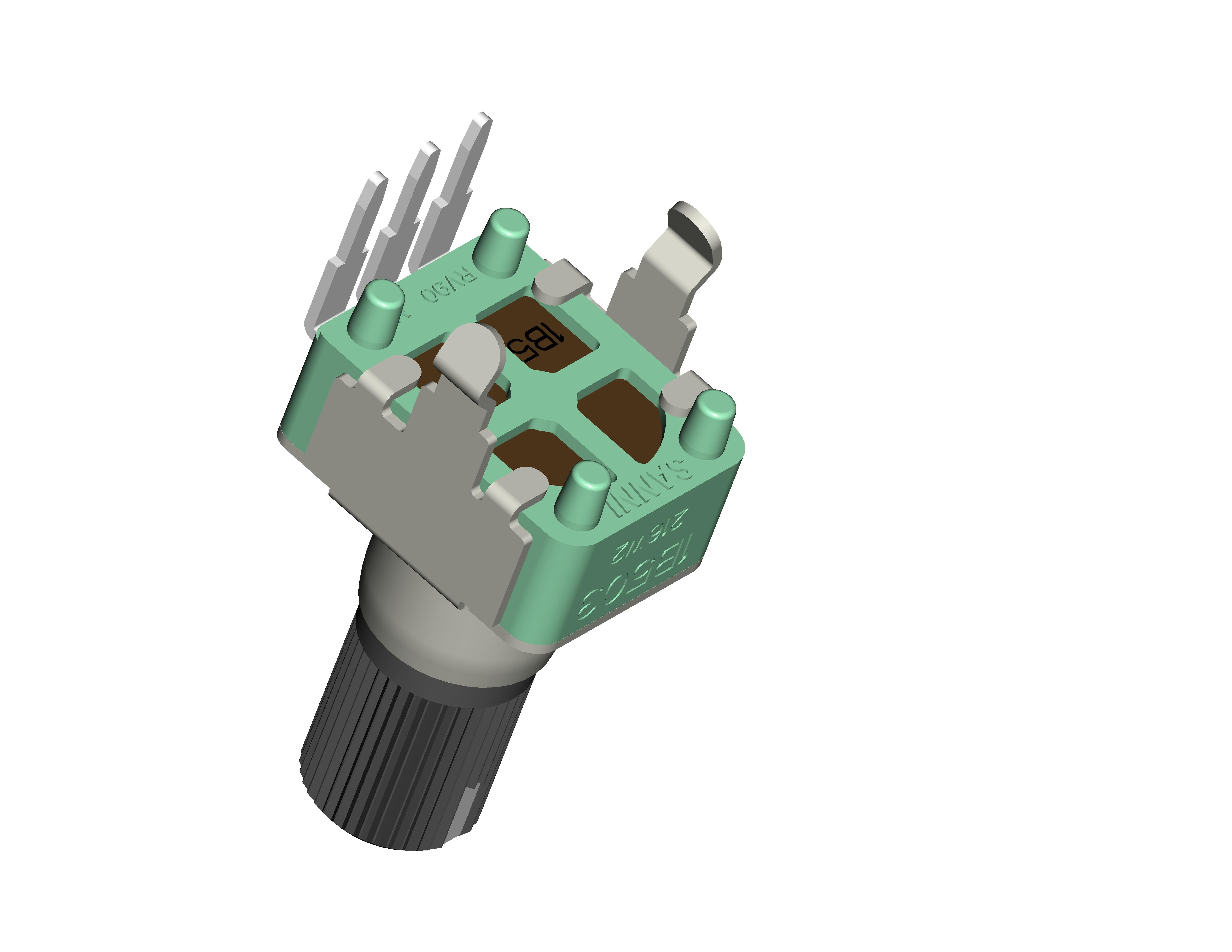

0.05W Rotary Potentiometer Through Hole/DIP Mount 500VAC Dielectric Strength Ideal for Precise Control Applications

Product Description:

The Rotary Potentiometer, also known as a Rotary Adjustable Resistor, is a versatile electrical component designed for a wide range of applications that require precise control over resistance values. This product is commonly referred to as a Rotary Electrical Potentiometer or a Rotary Multi-Turn Potentiometer due to its rotational nature.

The Rotary Potentiometer features a Terminal Type of PCB Lug, which allows for secure connection to printed circuit boards, ensuring stability and reliability in operation. With an Operating Temperature range of -25℃ to 85℃, this potentiometer can withstand varying environmental conditions, making it suitable for use in diverse settings.

One of the key specifications of the Rotary Potentiometer is its Rotational Life of 10,000 Cycles, indicating its durability and long-lasting performance. This extended life cycle ensures consistent and accurate resistance adjustments over a prolonged period of use, contributing to the reliability of electronic systems.

The Shaft Diameter of the Rotary Potentiometer is 6mm as a standard specification, providing compatibility with common mounting configurations. Additionally, custom shaft diameters can be accommodated to meet specific design requirements, offering flexibility in application scenarios.

The Rotary Potentiometer is a fundamental component in electronic circuits, enabling precise voltage control and signal modulation. Its compact design and robust construction make it suitable for use in various devices, including audio equipment, lighting controls, industrial machinery, and automotive systems.

Whether used for volume adjustment in audio mixers or for setting parameters in industrial control systems, the Rotary Potentiometer offers reliable performance and consistent resistance values. Its multi-turn design allows for fine-tuning of resistance levels, making it ideal for applications that demand precision and accuracy.

In conclusion, the Rotary Potentiometer is a versatile and reliable component that serves as a key element in electronic circuits requiring resistance adjustments. With its PCB Lug terminal type, wide operating temperature range, extended rotational life, and customizable shaft diameter, this potentiometer offers flexibility and durability in various applications, making it an essential choice for engineers and designers seeking high-quality rotary electrical components.

Features:

• Product Name: Rotary Potentiometer
• Power Rating: 0.05W
• Mounting Type: Through Hole/DIP Mount
• Shaft Material: Plastic
• Dimension: 9mm
• Resistance Tolerance: ±20%

Technical Parameters:

Applications:

SANNI Rotary Multi-Turn Potentiometers are versatile devices suitable for various applications across different industries. These high-quality potentiometers, originating from Dongguan, China, are known for their reliability and precision in controlling electrical devices.

One common application scenario for the SANNI Rotary Potentiometer is in audio equipment. These potentiometers are widely used in audio mixers, amplifiers, and other sound systems for precise analog adjustment of volume levels and tone controls. The robust construction of the potentiometer, with a shaft diameter of 6mm or customizable options, ensures smooth and accurate adjustments for optimal audio performance.

Another key application area for the SANNI Rotary Potentiometer is in industrial automation. The potentiometer's dielectric strength of 500VAC and insulation resistance of 100MΩ minimum make it ideal for use in control panels, motor speed controls, and other industrial machinery. The rotary voltage divider potentiometer feature allows for fine-tuning of voltage levels, making it a crucial component in automation systems.

Additionally, the SANNI Rotary Potentiometer finds its place in automotive electronics. With its PCB lug terminal type and customizable shaft length options ranging from 6mm to 20mm, these potentiometers are suitable for use in automotive climate control systems, lighting controls, and dashboard instrumentation. The precise control offered by the potentiometer enhances the overall performance and functionality of automotive electronics.

In summary, the SANNI Rotary Potentiometer is a reliable and versatile rotary analog adjustment device that caters to a wide range of applications. Whether in audio equipment, industrial automation, automotive electronics, or other sectors, these potentiometers deliver consistent performance and precise control. With their high-quality construction and customizable features, SANNI potentiometers are the go-to choice for professionals seeking reliable and accurate voltage control solutions.

Customization:

Product Customization Services for the Rotary Potentiometer:

Brand Name: SANNI

Place of Origin: Dongguan China

Power Rating: 0.05W

Shaft Material: Plastic

Resistance Tolerance: ±20%

Shaft Type: Round/Flat/knurled

Product Name: Rotary Potentiometer

Description: This product customization service allows you to tailor the Rotary Potentiometer to meet your specific needs. Whether you require a Rotary Linear Variable Resistor, Rotary Electrical Position Sensor, or Rotary Voltage Divider Potentiometer, we can customize the product according to your requirements.

Support and Services:

Our Product Technical Support and Services for the Rotary Potentiometer include:

- Expert troubleshooting assistance for any issues related to the rotary potentiometer.

- Guidance on proper installation and usage of the rotary potentiometer.

- Product documentation and manuals for reference.

- Repair and maintenance services for faulty rotary potentiometers.

- Product warranty information and claims process.

Packing and Shipping:

Product Name: Rotary Potentiometer

Description: High-quality rotary potentiometer for precise control of electrical devices.

Package Includes: Rotary Potentiometer x 1

Shipping Information: This product will be carefully packaged to ensure safe delivery. Shipping times may vary depending on location.

FAQ:

Q: What is the brand name of this Rotary Potentiometer?

A: The brand name of this Rotary Potentiometer is SANNI.

Q: Where is this Rotary Potentiometer manufactured?

A: This Rotary Potentiometer is manufactured in Dongguan, China.

Q: What is the resistance range of this Rotary Potentiometer?

A: The resistance range of this Rotary Potentiometer varies based on the specific model, but typically ranges from X ohms to Y ohms.

Q: Can this Rotary Potentiometer be used for audio volume control?

A: Yes, this Rotary Potentiometer is suitable for audio volume control applications.

Q: Is this Rotary Potentiometer compatible with Arduino or other microcontroller platforms?

A: Yes, this Rotary Potentiometer is compatible with Arduino and other microcontroller platforms for various projects and applications.
