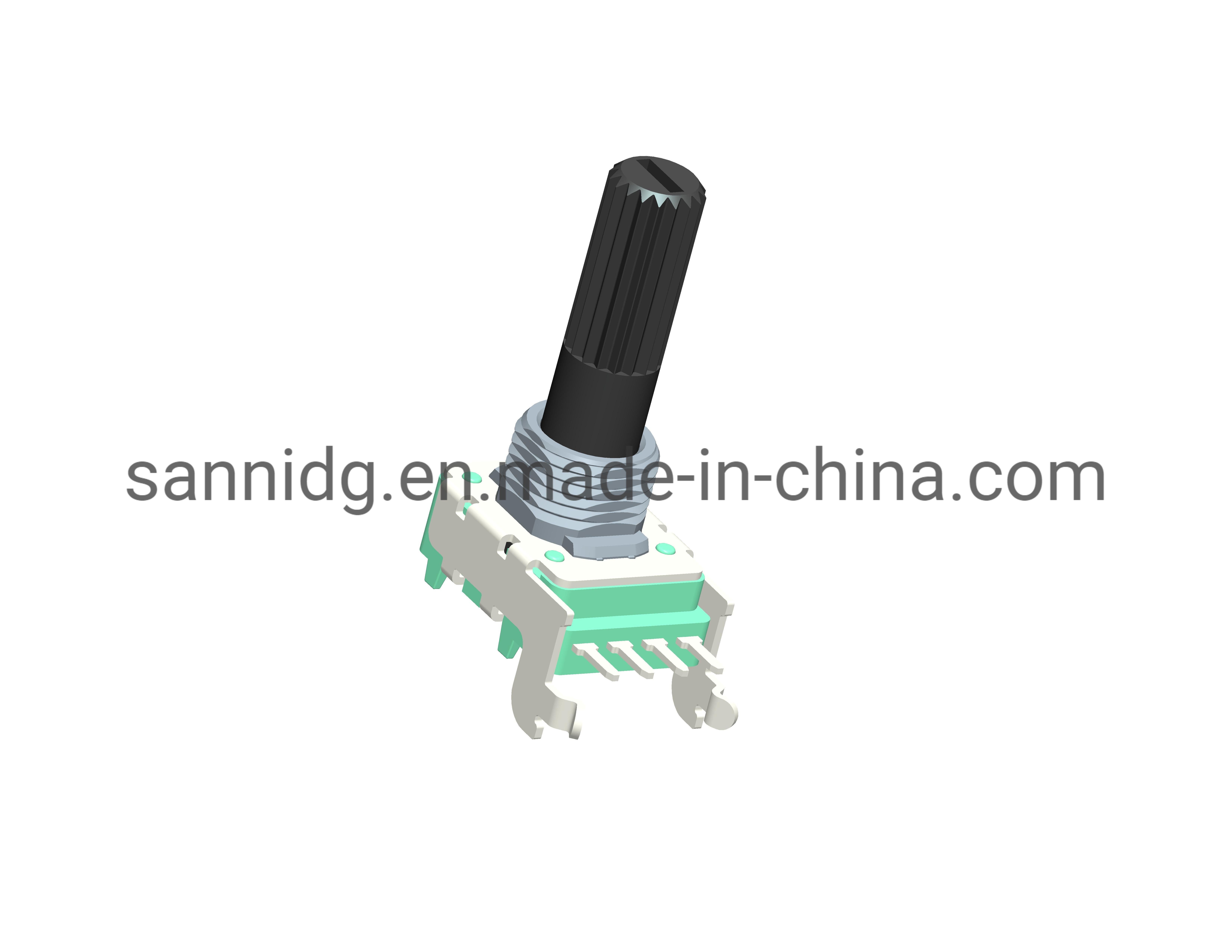

6mm Shaft Diameter Rotary Potentiometer Round Flat Knurled Shaft Types Resistance Range 300 Ohm to 3 Mega Ohm Durable

Product Description:

The Rotary Potentiometer is a highly reliable and versatile component designed for precise control of electrical resistance in various electronic circuits. Known for its durability and accuracy, this device serves as a key element in adjusting voltage levels, tuning signal levels, and calibrating instruments. This product is an excellent example of a Rotary Linear Variable Resistor, offering smooth and consistent resistance adjustment over its entire range.

One of the standout features of this Rotary Potentiometer is its impressive insulation resistance, rated at a minimum of 100MΩ. This high insulation resistance ensures minimal leakage current, thereby enhancing the overall stability and performance of the device in sensitive electronic applications. It provides excellent electrical isolation between the resistive element and the outer casing, which is crucial for maintaining signal integrity in precision circuits.

The potentiometer is designed as a single gang unit, meaning it contains one resistive track and one wiper. This configuration is ideal for applications requiring straightforward resistance adjustment without the complexity of multiple gangs. This single gang design simplifies the control mechanism and reduces potential points of failure, making it suitable for a wide range of electronic devices.

Flexibility in shaft design is another notable characteristic of this product. The Rotary Potentiometer comes with options for round, flat, or knurled shafts, catering to different mounting and user interface requirements. The round shaft offers a traditional and smooth feel, ideal for fine adjustments. The flat shaft provides a secure grip and prevents slippage when used with certain types of knobs or levers. The knurled shaft enhances tactile feedback and grip, making it easier to adjust the resistance even in slippery or challenging conditions.

In terms of resistance range, this potentiometer covers a broad spectrum from 300Ω up to 3MΩ. This wide resistance range makes it highly adaptable for various applications, from low-resistance settings needed in audio equipment and control circuits to high-resistance settings for sensor calibration and voltage division. Such versatility ensures that this Rotary Electrical Potentiometer can be utilized in both industrial and consumer electronics.

The terminal type for this potentiometer is PCB lug, which facilitates easy and secure mounting on printed circuit boards. PCB lug terminals provide reliable mechanical stability and excellent electrical contact, ensuring that the potentiometer remains firmly in place during operation. This terminal configuration is particularly beneficial in automated assembly processes, improving production efficiency and consistency.

As a Rotary Multi-Turn Potentiometer, this device allows for multiple full rotations of the shaft to achieve the desired resistance value. This multi-turn capability provides finer resolution and more precise control over resistance adjustment compared to single-turn potentiometers. It is especially advantageous in applications where accurate tuning and repeatability are critical, such as instrumentation, measurement devices, and specialized control systems.

Overall, this Rotary Potentiometer combines robust construction, precise performance, and versatile features to meet the demands of modern electronic design. Whether used as a Rotary Linear Variable Resistor for smooth voltage control, a Rotary Multi-Turn Potentiometer for fine adjustment, or a Rotary Electrical Potentiometer for general resistance tuning, it delivers consistent and reliable results. Its high insulation resistance, flexible shaft options, wide resistance range, single gang design, and PCB lug terminals make it a preferred choice for engineers and designers seeking quality and performance in a rotary potentiometer.

Features:

• Product Name: Rotary Potentiometer
• Type: Rotary Voltage Divider Potentiometer
• Function: Rotary Adjustable Resistor / Rotary Variable Resistor
• Rotational Life: 10,000 Cycles
• Dimension: 9mm
• Material: Plastic & Metal
• Shaft Material: Plastic
• Operating Temperature Range: -25℃ to 85℃

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer, originating from Dongguan, China, is a highly versatile and reliable component widely used in various applications requiring precise manual adjustment of electrical resistance. As a Rotary Voltage Divider Potentiometer, it plays a crucial role in controlling voltage levels within circuits, making it an essential device for both industrial and consumer electronics. Its compact dimension of 9mm allows it to be easily integrated into tight spaces, ensuring seamless functionality without compromising design constraints.

One of the primary application occasions for the SANNI Rotary Potentiometer device is in audio equipment, such as amplifiers, mixers, and radios, where it serves as a manual adjustment tool to fine-tune volume, tone, and balance. The tactile feedback provided by the rotary manual adjustment mechanism allows users to make smooth and precise changes, enhancing the overall user experience. Additionally, its PCB lug terminal type ensures secure and stable connections on printed circuit boards, contributing to the device’s durability and performance.

In industrial settings, this rotary potentiometer is commonly used for calibrating equipment, adjusting sensor outputs, and tuning control parameters in machinery. Its resistance tolerance of ±20% and operating temperature range from -25℃ to 85℃ make it suitable for environments with varying temperature conditions, ensuring consistent performance under stress. The plastic shaft material provides durability while maintaining a lightweight profile, ideal for applications where frequent adjustments are necessary without causing wear or damage.

Moreover, the SANNI Rotary Potentiometer is an excellent choice for hobbyists and DIY enthusiasts working on electronic projects requiring precise voltage division and resistance control. Whether used in robotics, home automation, or custom audio systems, this rotary manual adjustment tool offers reliability and ease of use. Its robust design and quality manufacturing from Dongguan, China, ensure longevity and steady operation, making it a preferred component in both prototype and production stages.

In summary, the SANNI Rotary Voltage Divider Potentiometer is a versatile rotary potentiometer device suitable for a wide range of scenarios, including audio equipment tuning, industrial calibration, and electronic project development. Its compact 9mm dimension, durable plastic shaft, and stable PCB lug terminal connections make it an indispensable rotary manual adjustment tool for precise control and reliable performance in diverse operating conditions.
